ANTRACK V1

Short Description:


Product Detail

Product Tags

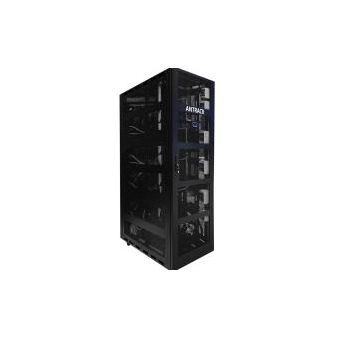

ANTRACK V1

Function BTC/BCH/BSV  SHA256  Hydro-cooling Miner
Specifications 24kW 4 Hydro-cooling Miner Rack

Specification Details For ANTRACK

Product Glance
Model ANTRACK
Version V1
Capacity 4 units ANTMINER (S21 Hyd.)
Maximum load,kW 24



Detailed Characteristics
Hardware configuration
Size (width*height*depth),mm 600*2000*1000
Net weight, kg 300
Network connection mode EJ45 Ethernet 10/100M
Power supply
Power supply AC input voltage, Volt(1-1) 380~415
Power supply AC input frequency range, Hz 50~60
Power supply AC Input current, Amp(1-2) 80
Environment requirements
Ambient temperature, °C 15~45
Water flow, L/min 32.0~40.0
Water pressure, bar ≤3.5
Working fluid(1-3) Deionized water/Pure water
Liquid PH 8.5~9.5
Storage temperature, °C -20~70
Operation humidity(non-condensing), RH 10~90%

NOTE:

(1-1) Caution: Wrong input voltage may probably cause miner damaged

(1-2) Three-phase AC input.

(1-3) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.
