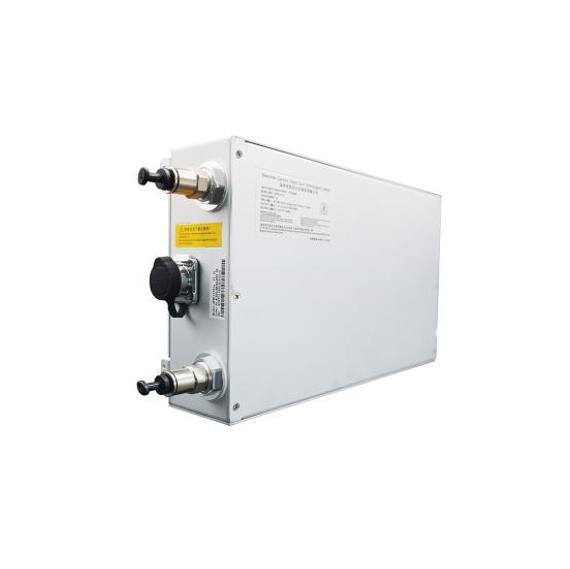

S19 Hydro/T19 Hydro/S19 Pro+ Hydro SHA256 Hydro-cooling Miner
| Product Glance |
|
| Out1 |
|
| DC Voltage |
17V-21.6V |
| Rated Current(380V input) |
300A |
| Rated Power(380Vinput) |
6500W |
| Ripple & Noise |
<1% |
| Line Regulation |
<1% |
| Load Regulation |
<1% |
| Setup Time |
<5S |
| Short Circuit Protection |
>10mS |
| Detailed Characteristics |
|
| Out2 |
|
| DC Voltage |
12.3V |
| Rated Current(220 V input) |
1A |
| Ripple & Noise |
<1% |
| Voltage Accuracy |
12.2V—12.4V |
| Line Regulation |
<1% |
| Load Regulation |
<1% |
| Setup Time |
<5S |
| Short Circuit Protection |
>10mS |
| Input |
|
| Voltage Range |
380-415V AC |
| Frequency Range |
50~60 Hz |
| Power Factor |
>0.99(full load) |
| Leakage Current |
<1.5mA（380V 50Hz） |
| Protection |
|
| Low-voltage Input |
< 304V AC |
| Output Short Circuit |
Yes |
| Overheat Protection |
Yes |
| Over-current Output |
300A-350A |
| Environment |
|
| Operating Temperature |
-20-45℃ |
| Operating Humidity |
20%-90%RH（non–condensing） |
| Altitude |
< 2000m |
| Structure |
|
| Dimensions |
320mm*179mm*63mm |
| Net Weight |
5kg |
| Cooling System |
Water cooling |
| Inlet temperature |
20-35 ℃ |
| Water flow rate |
8L/min |
| Water pressure |
<3.5 BAR |
