Function

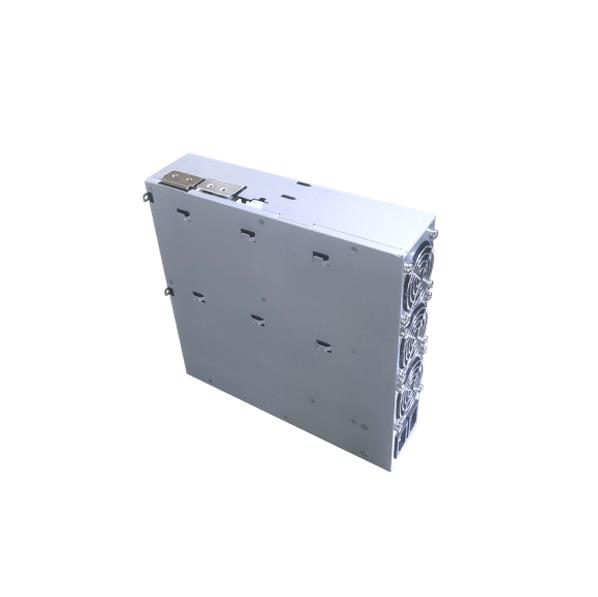

S19j Pro-A/S19 Pro-A SHA256 Air-cooling Miner
| Product Glance |
|
| Out1 |
|
| DC Voltage |
12V-15V |
| Rated Current(277V input) |
233A |
| Ripple & Noise |
<1% |
| Line Regulation |
<1% |
| Load Regulation |
<1% |
| Setup Time |
<2S |
| Short Circuit Protection |
>10mS |
| Detailed Characteristics |
|
| Out2 |
|
| DC Voltage |
12.3V |
| Rated Current(277V input) |
15A |
| Ripple & Noise |
<1% |
| Voltage Accuracy |
12.2V—12.4V |
| Line Regulation |
<1% |
| Load Regulation |
<1% |
| Setup Time |
<2S |
| Short Circuit Protection |
>10mS |
| Input |
|
| Voltage Range |
277V AC ±10% |
| Frequency Range |
60Hz |
| Power Factor |
>0.99(full load) |
| Leakage Current |
<1.5mA（220V 50Hz） |
| Protection |
|
| Input low-voltage protection value |
170V-180V AC |
| Output Short Circuit |
Yes |
| Overheat Protection |
Yes |
| Over-current Output |
291A-350A （protection value varies under different voltage） |
| Environment |
|
| Operating Temperature |
-20-45℃ |
| Operating Humidity |
20%-90%RH（non–condensing） |
| Altitude |
< 2000m |
| Structure |
|
| Dimensions |
254.6mm*251.6mm*63mm |
| Net Weight |
3.6kg MAX |
| Cooling System |
Forced‐air cooling |
| Noise |
45dBA |
