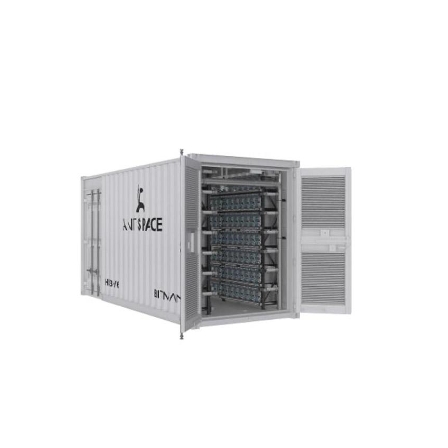

Specification Details For ANTSPACE HK3 V6
with EC1-DWT
1030KW 210 Rack Space
| Product Overview |
|
| Model |
ANTSPACE HK3 V6 |
| Dimensions (L*W*H) (mm) |
6058*2438*2896 |
| Miner Capacity |
210 units -S19 Hyd. Series miner |
| Container Certification |
China Classification Society Certification |
| Safety Certification |
NFPA 79:2021
UL 508A:2018 R8.21
CSA C22.2 No. 14-18
ANSI/ISO 12100:2012
IEC 60204 Ed 5.1 2009 |
| Operating Power(kW) |
1047~1050 |
| PUE(Power Usage Effectiveness) |
1.022(Excluding cooling tower)/1.036(Including cooling tower) |
| Input Voltage and Frequency |
400V±5% 50/60Hz |
| Detailed Characteristics |
|
| Shipping Weight(T) |
8 |
| Operating Weight (T) |
12 |
| Main Switch of Power Distribution Cabinets(A) |
1200 |
| Rated Current(A) |
952 |
| Standard Power(kW) |
1049 |
| Maximum Power(kW) |
1050 |
| Rated Current per Miner(A) |
10 |
| Inlet Cable |
The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase:
L1 single core cable 600kcMil(300mm²)x4
L2 single core cable 600kcMil(300mm²)x4
L3 single core cable 600kcMil(300mm²)x4
N Single-core cable 600kcMil(300mm²)x4
PE single-core cable 500kcMil(240mm²)x2 |
| Connection Interface(Cooling Tower) |
DN100（ISO2852 PN16） |
| Connection Interface(Plate Heat Exchage Interface) |
DN100(GB/T 9119-2010 PN16 DN100) |
| Flow Rate(m³/h) |
＞85 |
| Quantity of ANTSPACE powered by one 2500kVA Transformer |
2 |

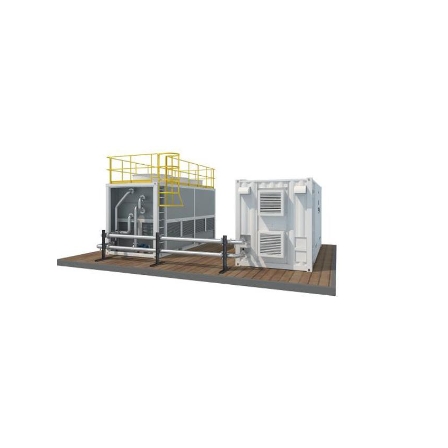

Specification Details For Dry-Wet Towers
| Product Overview |
|
| Type |
Dry-Wet Tower Container Type （DWT-C） |
| Dimensions(L*W*H)(mm) |
6058*2438*2896 |
| Heat Dissipation Capacity(kW) |
1200 |
| Outlet Temperature @ 28℃ Wet Bulb Temperature |
35℃ |
| Container Certification |
China Classification Society Certification |
| Safety Certification |
NFPA 79:2021
UL 508A:2018 R8.21
CSA C22.2 No. 14-18
ANSI/ISO 12100:2012
IEC 60204 Ed 5.1 2009 |
| Operating Power(kW) |
14~28 |
| Motor Rated Voltage and Frequency |
400V±5% 50/60Hz |
| Detailed Characteristics |
|
| Shipping Weight(T) |
7 |
| Operating Weight（T） |
13 |
| Connection Interface(Container) |
DN125(GB/T 9119-2010 PN16 DN125) |
| Water Resupply Pipe Interface |
DN40(Internal thread) |
| Drain Pipe Interface |
DN65(Internal thread) |
| Noise Level @25℃, 16m |
70dBA |
| Water Consumption(m³/h) |
1~1.3m³/h |

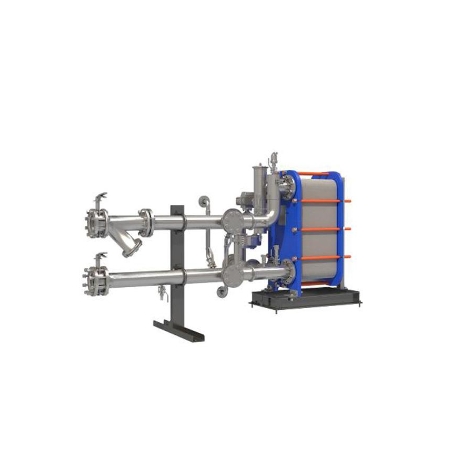

Specification Details For Plate Heat Exchanger
| Product Overview |
|
| Type |
Plate Heat Exchanger （PHE） |
| Dimensions(L*W*H)(mm) |
775*454*1090 |
| Material |
TI |
| Detailed Characteristics |
|
| Shipping Weight(KG) |
360 |
| Operating Weight（KG） |
440 |
| Connection Interface(Container) |
DN100(GB/T 9119-2010 PN16 DN100) |
| External circulation supply liquid temperature (℃) |
0~30 |
| External circulation flow rate (m³/h) |
33~110 |
| Internal circulation flow rate (m³/h) |
100 |

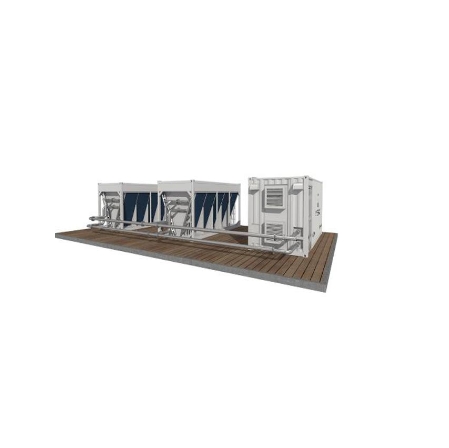

Specification Details For Dry Cooler Towers
| Product Overview |
|
| Type |
Dry Cooler Towers Container Type （DCT-C） |
| Number |
2 |
| Dimensions(L*W*H)(mm) |
6058*2438*2896 |
| Outlet Temperature @ 30℃ ambient temperature |
35℃ |
| Container Certification |
China Classification Society Certification |
| Operating Power(kW) |
20~32 |
| Motor Rated Voltage and Frequency |
400V±5% 50/60Hz |
| Detailed Characteristics |
|
| Shipping Weight(T) |
6 |
| Operating Weight（T） |
8 |
| Connection Interface(Container) |
DN125(GB/T 9119-2010 PN16 DN125) |
| Water Resupply Pipe Interface |
DN10（Tapered tube） |
| Noise Level @25℃, 16m |
65dBA |
| Pipe materials |
304 stainless steel |
| Points For Attention
| 1 |
Cooling tower is better located on flat level ground, horizontal degree (±1 degree). |
| 2 |
The ground below said ANTSPACE units must be well-hardened and stable enough to always withstand |
| 3 |
Buyers of the ANTSPACE should prepare a 20t crane, assemble suitable tools and manpower, and arrange all required logistics if an ANTSPACE order is to be delivered to the site of opera4tion. |
| 4 |
Peripheral items such as stairs, transformers, cables, bridge racks and cable distribution boxes are not |
| 5 |
If you plan to store ANTSPACE units vertically on top of one another, please advise the Bitmain sales’ team |
| 6 |
Leave at least 2 meters of air inlet space around the cooling tower |
| 7 |
Operating elevation: ≤2000m. If elevation is greater than 1000 meters and a 2500kVA transformer is being used, the number of Antminer units installed in one ANTSPACE unit must be decreased. |
| 8 |
Operating temperature: -25°C to 40°C. Operating humidity: 10%RH to 90%RH. The ambient temperature requirement in high humidity areas is not higher than 40 °C. When the ambient temperature is <0 °C, the inlet and outlet blinds should be closed and the internal heating should be ＞0 °C before the mining |
| 9 |
The ambient temperature of the ANTSPACE does not represent the ambient temperature of the mining machine. |
