| Specifications

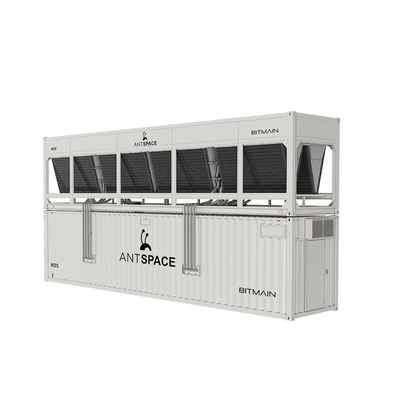

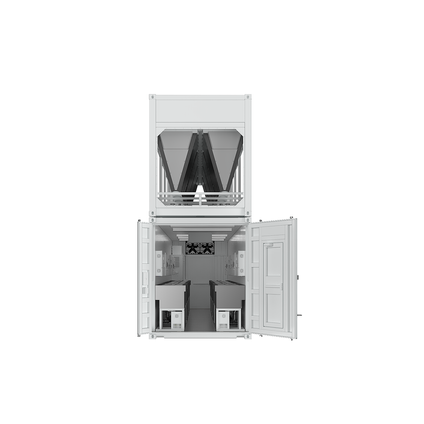

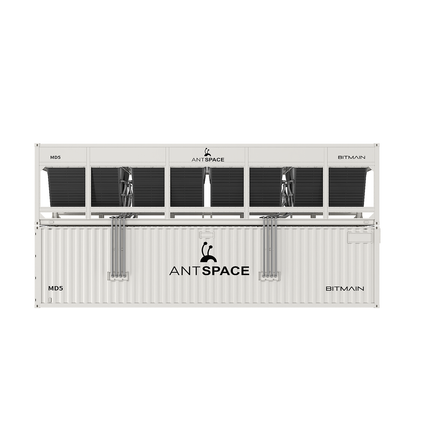

Specifications For ANTSPACE MD5
| Product Overview |
Value |
| Model |
ANTSPACE MD5 |
| Dimensions (l*w*h), mm |
12192×2438×2896 |
| Miner capacity |
160 units -S21 Imm. & S21 XP Imm. |
| Container certification |
China Classification Society Certification |
| Safety certification |
NFPA 79: 2024
UL 508A: 2018 R7.22
CSA C22.2 No. 301:23
ANSI/ISO 12100: 2012
EN ISO 12100: 2010
EN 60204-1: 2018 |
| Operating power, kW |
1000 |
| PUE(Power usage effectiveness), @25℃ ambient temperature |
1.06 |
| Input voltage and frequency |
400V±5% 50/60Hz |
| Detailed Characteristics |
Value |
| Shipping weight, T |
12 |
| Operating weight, T |
18.5 |
| Main switch of power distribution cabinets, A |
1200*2 |
| Rated current, A |
A: 952; B: 866 |
| Rated Current per Miner, A |
20 |
| Inlet cable |
The inlet cables can withstand high-voltage of above 600V, with the following requirements:
L1 single core cable 600kcMil(300mm²)x4
L2 single core cable 600kcMil(300mm²)x4
L3 single core cable 600kcMil(300mm²)x4
N single-core cable 600kcMil(300mm²)x4
PE single-core cable 500kcMil(240mm²)x2 |
| Connection interface (Cooling Tower) |
DN 65 (ISO2852 PN16） |
Specifications For Dry Tower
| Product Overview |
Value |
| Dimensions(L*W*H), mm |
12192×2438×2896 |
| Outlet Temperature @30℃ ambient temperature |
35℃ (Outlet temp 5℃ above ambient temp) |
| Container Certification |
China Classification Society Certification |
| Operating Power, kW |
100 |
| Motor Rated Voltage and Frequency |
400V±5% 50/60Hz |
| Detailed Characteristics |
Value |
| Shipping weight, T |
11.8 |
| Operating weight, T |
12.8 |
| Connection interface |
DN 65 (ISO2852 PN16） |
| Noise Level @25℃， 15m, dBA |
70 |
| Pipe materials |
304 stainless steel |
| Points For Attention
| 1 |
The cooling tower is required to be placed on flat ground, with a horizontal alignment within ±1 degree. |
| 2 |
The ground surface is required to be hardened and stable, able to withstand at least a 14-ton load. |
| 3 |
A 15-ton crane is required for unloading an ANTSPACE unit and a cooling tower. |
| 4 |
Add-on items such as stairs, transformers, cables, bridge racks and cable distribution boxes are not included in the delivery of ANTSPACE. The BITMAIN team can provide design suggestions if needed. |
| 5 |
The client needs to confirm the opening direction of the container, which should face the air intake. The door on the left is designed by default. |
| 6 |
Keep at least 4 meters of air intake space around the cooling tower. |
| 7 |
Altitude: ≤3000m. If the altitude exceeds 1000 meters, the transformer and switch should be derated. Additionally, the total power of ANTSPACE must be decreased by 1% for every additional 100 meters of elevation. |
| 8 |
The internal circulation system should be turned on to heat the coolant to above 20°C before starting the mining machine. |
| 9 |
The suitable ambient temperature for ANTSPACE does not necessarily correspond to the suitable ambient temperature for the mining machine. |
| Purchasing Guidelines
1. It is recommended to use the ANTSPACE MD5 simultaneously with the ANTMINER S21 Imm. or ANTMINER S21 XP Imm.
2. The pictures shown are for reference only; the final shipment version shall prevail.
