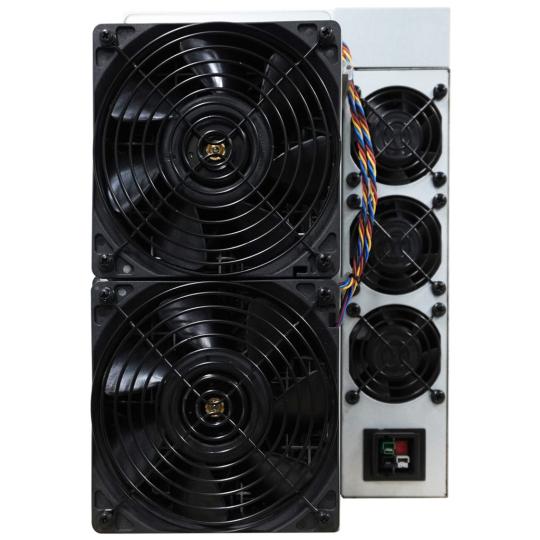

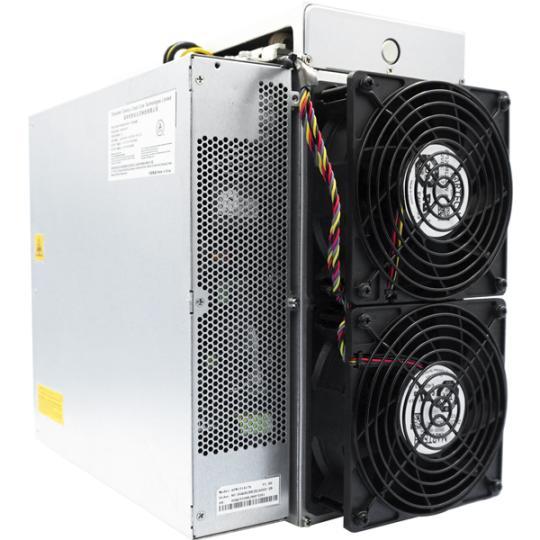

KS5 Pro
| Specifications
| Product Glance | |
| Model | KS5 |
| Version | KS1-20 |
| Sub | Pro |
| Algorithm | Cryptocurrency | kHeavyHash | KAS |
| Hashrate, TH/s(1-1) | 21 |
| Power on wall @25°C, Watt(1-1) | 3150 |
| Power efficiency on wall @25°C, J/T(1-1) | 150 |
| Detailed Characteristics | |
| Power Supply | |
| Power supply AC Input voltage range V(2-1) | 220~277V AC |
| Power supply AC Input Frequency Range, Hz | 47~63 |
| Power supply AC Input current, Amp(2-2) | 20 |
| Adapted AC Output power requirment W(2-3) | 4000 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Miner Size (Length*Width*Height, w/o package),mm | 430*195.5*290 |
| Miner Size (Length*Width*Height, with package),mm | 570*316*430 |
| Net weight, kg | 15.8 |
| Gross weight, kg | 17.7 |
| Noise,dBA@25°C(2-4) | 76 |
| Environment Requirements | |
| Operation temperature,°C | 0~40 |
| Storage temperature,°C | -20~70 |
| Operation humidity(non-condensing) , RH | 10~90% |
| Operation altitude, m(2-5) | ≤2000 |
NOTE:
1.If the user fails to use the product in accordance with the given instructions, specifications, and conditions provided, or change the function setting without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
(1-1) The Hashrate value, Power on wall, and Power efficiency on wall are all typical values.The actual Hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) One 20A input wire.
(2-3) Caution: It is strongly recommended that the power on wall of the miner does not exceed this value.
(2-4) Max condition: Fan is under max RPM(rotation per minute).
(2-5) When the miner is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1°C for every increase of 300m.
