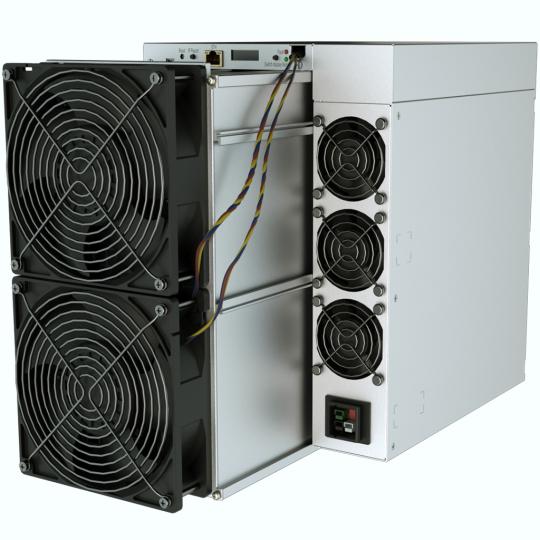

S21+
| Specifications
| Product Glance | Value |
| Model | S21+ |
| Version | (216T-10) |
| Crypto algorithm/coins | SHA256 | BTC/BCH/BSV |
| Typical hashrate,TH/s(1-1) | 216 |
| Power on wall @25℃(1-2), Watt(1-1) | 3564 |
| Power efficiency on wall@25℃(1-2),J/TH(1-1) | 16.5 |
| Detailed Characteristics | Value |
| Power supply | |
| Phase | 1 |
| Input voltage range(2-1) , Volt | 220~277 |
| Input frequency range, Hz | 50~60 |
| Maximum input current, Amp | 20 |
| Hardware Ronfiguration | |
| Network connection mode | RJ45 Ethernet 10/100M |
| Server size (length*width*height, w/o package), mm | 449*219*293 |
| Server size (length*width*height, with package), mm | 640*360*450 |
| Net weight, kg | 22.9 |
| Gross weight, kg | 25.7 |
| Noise(2-2)@30℃, dBA | 76 |
| Environment Requirements | |
| Operation temperature,℃ | -20~45 |
| Storage temperature,℃ | -20~70 |
| Operation humidity(no condensation), RH | 10%~90% |
| Operation altitude(2-3), m | ≤2000 |
Notes:
(1-1) The Hashrate value, Power on wall, and Power efficiency on wall are all typical values, The actual Hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.
(1-2) Inlet air temperature.
(2-1) Caution: Wrong input voltage may probably cause server damaged.
(2-2) The noise is loudest when the fan is under maximum RPM(rotation per minute).
(2-3) When the server is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m.
| Performance Curve
Hashrate vs. Ambient Temperature
J/T vs. Ambient Temperature
