| Performance Curves
1. Hashrate vs. Ambient Temperature
2. Power Efficiency vs. Ambient Temperature
(1-1) The hashrate value, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power efficiency on wall fluctuate by ±5%.
| Specifications
| Product Glance |
Value |
| Model |

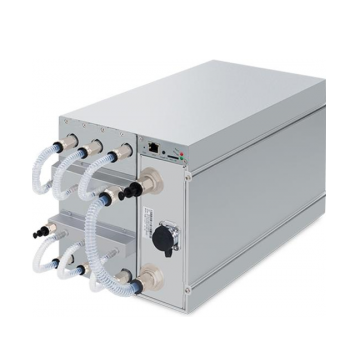

S21e Hyd. |
| Crypto algorithm/coins |
SHA256 | BTC/BCH/BSV |
|
Typical hashrate, TH/s(2-1)
|
|
| Power on wall @35°C(2-2), Watt(2-1) |
|
| Power efficiency on wall @35°C(2-2), J/TH(2-1) |
17 |
| Detailed Characteristics |
Value |
| Power supply |
|
| Phase |
3 |
| Input voltage(3-1) , Volt |
380~415 |
| Input frequency range, Hz |
50~60 |
| Maximum input current, Amp |
12 |
| Hardware Configuration |
|
| Network connection mode |
RJ45 Ethernet 10/100M |
| Server size (length*width*height, w/o package), mm |
339*176*208 |
| Server size (length*width*height, with package), mm |
570*316*430 |
| Net weight, kg |
12.8 |
| Gross weight, kg |
14.1 |
| Environment Requirements |
|
| Inlet coolant temperature,°C |
20~50 |
| Coolant Flow, L/min |
8.0~10.0 |
| Coolant pressure, bar |
≤3.5 |
| Working Coolant(2-2) |
Antifreeze/ Pure water/ Deionized water |
| Coolant pH value |
Antifreeze: 7.0~9.0Pure water: 6.5~7.5
Deionized water: 8.5~9.5 |
| Diameter of Coolant pipe connector, mm |
OD10 |
| Storage temperature, °C |
-20~70 |
| Operation humidity(non-condensing), RH |
10~90% |
Notes:
(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.
(1-2) Inlet coolant temperature.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) For detailed working coolant use and maintenance instructions, please refer to ”ANTSPACE HK3 Water Cooling Container & Dry-Wet Tower Product Manual”, Chapter 9, Article 3, Point 6, “Maintenance of Coolant”!
