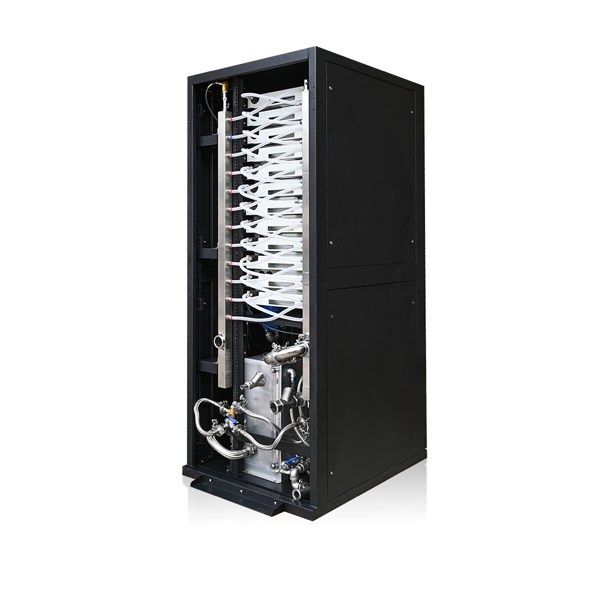

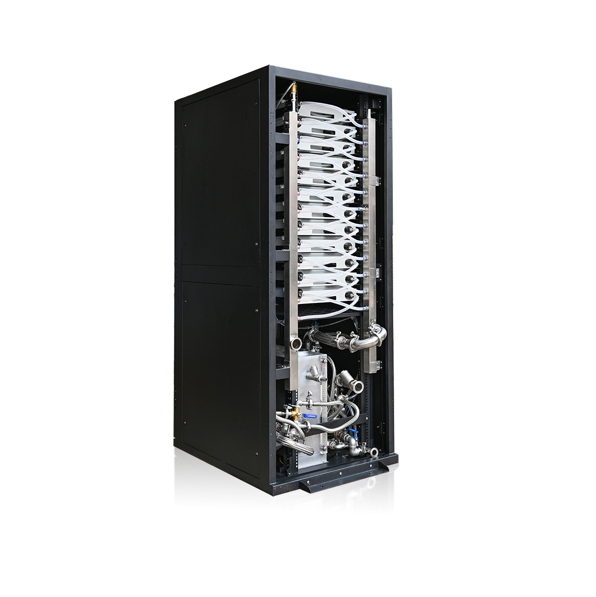

Whatsminer hydro cabinet-12 units

1.1 Cabinet size

Whatsminer water-cooled server 12-position cabinet, the standard external dimensions are about 1000MM in length, 800MM in width, and 2000MM in height; the single-layer internal dimensions of the cabinet are 451MM in length, 636MM in width, and 87MM in height (excluding plates), and the internal dimensions of the cabinet (12 positions) are long 451MM, width 636MM, height 1065MM (including plates); the overall net weight is 280KG (excluding machine, deviation value ±5KG).

1.2 Number of seats
Whatsminer water-cooled server 12-bit cabinet can accommodate up to 12 water-cooled devices of whatsminer M53 and M33 series.

1.3 Cabinet material
The cabinet has a board thickness of 1.2MM, outdoor paint process, and matte black spray plastic process, and can be stored outdoors for a long time.

Power system: 380V; 450A

PDU: 12-bit 16A power switch
Cooling heat: maximum 120KW; 15T closed water tower
Capacity: 12 units
CDU: It can realize water temperature monitoring, water flow monitoring, automatic water replenishment, liquid leakage detection, pressure detection, water pump frequency modulation, water level control and water purification function (optional)
Control system: each output switch is monitored by PLC (programmable logic controller)
Main water pipe: DN40
Water distribution pipe: DN8
Size: 100cm *80cm * 206cm
Weight: 180KG
